Sturdi-Wall® heavy-duty anchors connect post-frame structures to concrete foundations

Sturdi-Wall® brackets

ICC Logo

Heavy-duty anchor brackets for post-frame construction

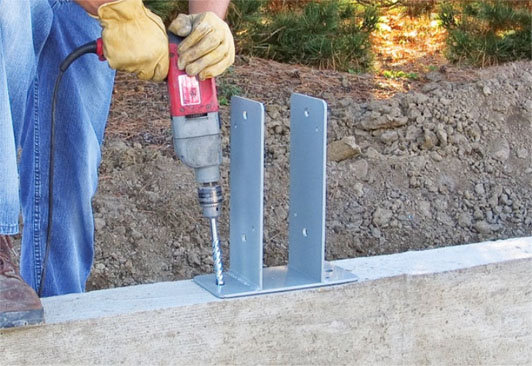

Construction worker installing Sturi-Wall® bracket with drill on concrete foundation
Construction working installing Perma-Column® close up

Sturdi-Wall® anchor brackets are your fastest and most-durable connection for building post-frame structures on concrete foundations. As the industry's No. 1-selling brand, they are available in drill-set and wet-set models for connecting post-frame structures to monolithic slabs, formed walls, and existing concrete pads. They are suitable for new construction, post repair, renovations, and more. For applications where the foundation is already poured and cured, use Sturdi-Wall® drill-set anchor brackets. For installation when the concrete is being poured, use Sturdi-Wall® Plus brackets.

Sturdi-Wall®

The Sturdi-Wall® drill set model is designed and engineered for applications in which the concrete foundation has already been poured and cured. Install exactly where you need it, reducing costly placement errors when a concrete subcontractor is used.

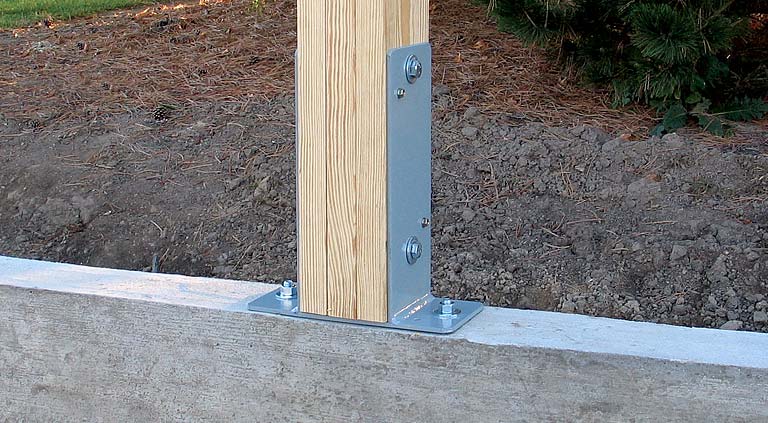

Post-frame with Sturdi-Wall® bracket mounted on concrete foundation
Sturdi-Wall® Plus

Providing the highest ultimate-strength connection to your foundation, Sturdi-Wall® Plus anchors are installed while concrete is still wet. Robotically welded rebar eliminates the need for drilling and securing with concrete fasteners.

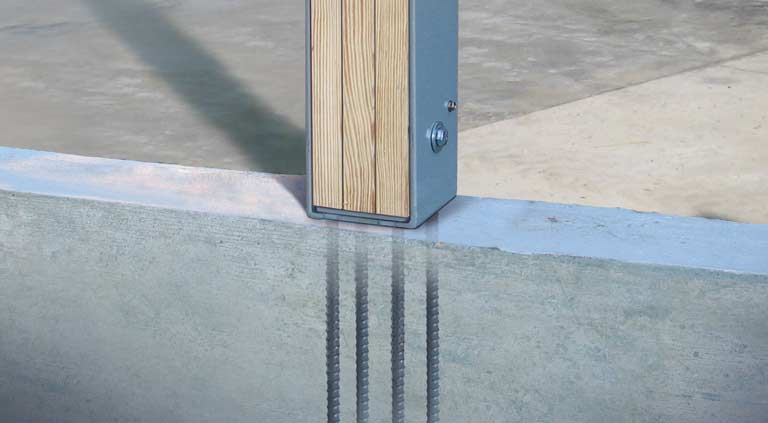

Post-frame with Strurdi-Wall® Plus anchored into concrete foundation with welded rebar

Certified excellence

Work with confidence with the only post-frame anchor bracket system that meets international building standards. The International Code Council Evaluation Service evaluated Sturdi-Wall® and Sturdi-Wall® Plus and certified they are compliant with the 2018 and 2015 International Building Code (IBC)® and the 2018 and 2015 International Residential Code (IRC)®. This recognition means:

Quicker permits and approvals for builders
ICC Logo
Builders and inspectors know our products are code-compliant
Engineered performance
Illustration of Strudi-Wall® bracket and post with Surdi-Wall® Plus with rebar

Sturdi-Wall® anchor brackets are constructed of American-made 1/4-inch steel, robotically welded, and finished with a durable powder coating. Sturdi-Wall® Plus features special-grade 1/4-inch or 5/8-inch rebar that is seismic-rated. Both post-frame anchor bracket systems feature the EpoxZi Shield coat that exceeds 2,500 salt-spray hours, preventing corrosion, resisting UV damage, and providing a professional look.

Available products
Drill-set model

All that’s needed to install the Sturdi-Wall® anchor system is a hammer drill with masonry bit and concrete fasteners. Epoxy anchors and expansion anchors also can be used but must be purchased through a local supplier.

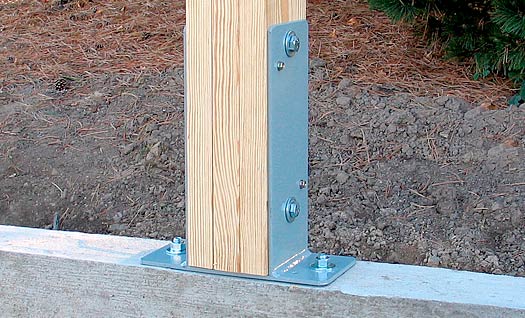

Sturdi-Wall® anchored onto concrete foundation
Wet-set model

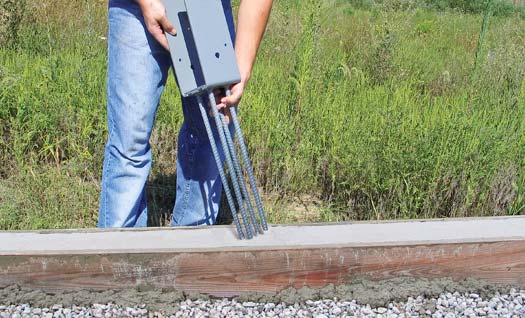

Because the Sturdi-Wall® Plus anchor system requires less concrete coverage than Sturdi-Wall® anchors, they are ideal for pier foundations and stem walls.

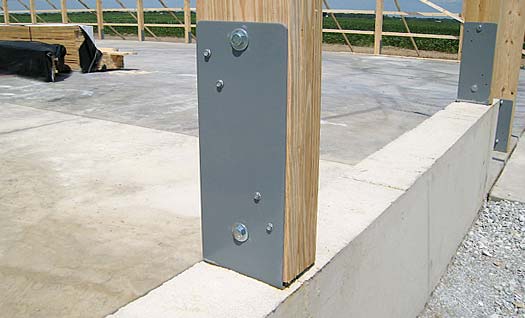

Sturdi-Wall® Plus mounted onto concrete with welded rebar
Hardware

The hardware and accessories needed to install both Sturdi-Wall® and Sturdi-Wall® Plus anchor brackets can be purchased individually or in kits.

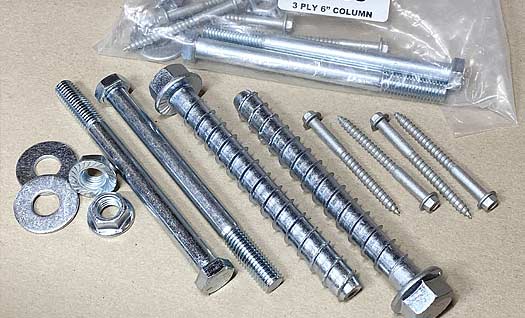

Close up of accessories for mounting Sturdi-Wall® and Sturdi-Wall® Plus
Learn the benefits of ICC-ES certification
ICC-ES Logo
Accelerate construction timelines and build with confidence

ICC-certification for the entire line of Perma-Column® products enables quicker permitting and approvals for post-frame, pole-barn and deck-building projects.


Build better. Build stronger. Build to last.
